Bill B
PostPosted: Sat Jul 23, 2016 8:49 pm
Offline
1275cc
1275cc

Joined: Sat Feb 09, 2013 5:44 pm
Posts: 2239
Location: Camden
winabbey wrote:
Bill B wrote:
winabbey wrote:
According to the BMC Australia Standards document:

PMZ410 is Recessed Pan-Head Screw Unified, Zinc Plated, 1/4" diam x 5/8" long, UNF 28 tpi
PMZ412 is the same but 3/4" long

What does a "Recessed Pan-Head" look like?

Attachment:
BMC Std S5.jpg


Well, "furgle me nergles"
That is brilliant!
"Pan head" is your standard dome-headed screw with slot drive; "Recessed" means Philips/pozidrive.
Does that also mean that Aust minis had pozidrive fasteners or was that only for UK standards?

Thanks Winabbey
Top
 Profile

winabbey
PostPosted: Sat Jul 23, 2016 9:31 pm
Offline
1360cc
1360cc
User avatar

Joined: Wed Oct 03, 2007 9:04 pm
Posts: 6752
Location: Melbourne, VIC
Bill B wrote:
... or was that only for UK standards?

BMC Australia adopted the BMC UK set of standards and modified them to suit, where required. That standard didn't need changing so it still says BMC UK in the footer. Other standards can be a specific BMC Australia version. Hydrolastic fluid is an example.

_________________
ex-NSW Police 1970 MK II Cooper S
VMCI #43
Top
 Profile

sitnlo62
PostPosted: Sun Jul 24, 2016 2:24 pm
Offline
998cc
998cc
User avatar

Joined: Tue Apr 11, 2006 8:15 am
Posts: 722
Location: Brisbane
gtogreen1969 wrote:
Hows this

sitnlo62 wrote:
David,
Here is a diagram of the way the hinge bolts, studs and washers should be. it is correct!
Note stud length and washer and spacer positions are shown for both upper and lower hinges.
Hope this is of some use to you.
Dave


How much simpler do you need it to be?
This diagram shows exactly how long each screw is, where it goes and the required washers.
I made this drawing years ago while disassembling factory fitted up doors.
OK, its a rough drawing but all the information is there, its not rocket science guys!!!

Dave

_________________
Top
 Profile

womble99
PostPosted: Mon Jun 26, 2017 9:46 pm
Offline
998cc
998cc
User avatar

Joined: Tue Aug 21, 2012 6:59 pm
Posts: 1125
Location: Barossa Valley, SA
So for someone starting with bare hinges the studs are 3 different sizes? Also does anyone have dimensions on MYH103 washer that Doug mentioned?
Top
 Profile

winabbey
PostPosted: Tue Jun 27, 2017 2:53 pm
Offline
1360cc
1360cc
User avatar

Joined: Wed Oct 03, 2007 9:04 pm
Posts: 6752
Location: Melbourne, VIC
womble99 wrote:
So for someone starting with bare hinges the studs are 3 different sizes? Also does anyone have dimensions on MYH103 washer that Doug mentioned?

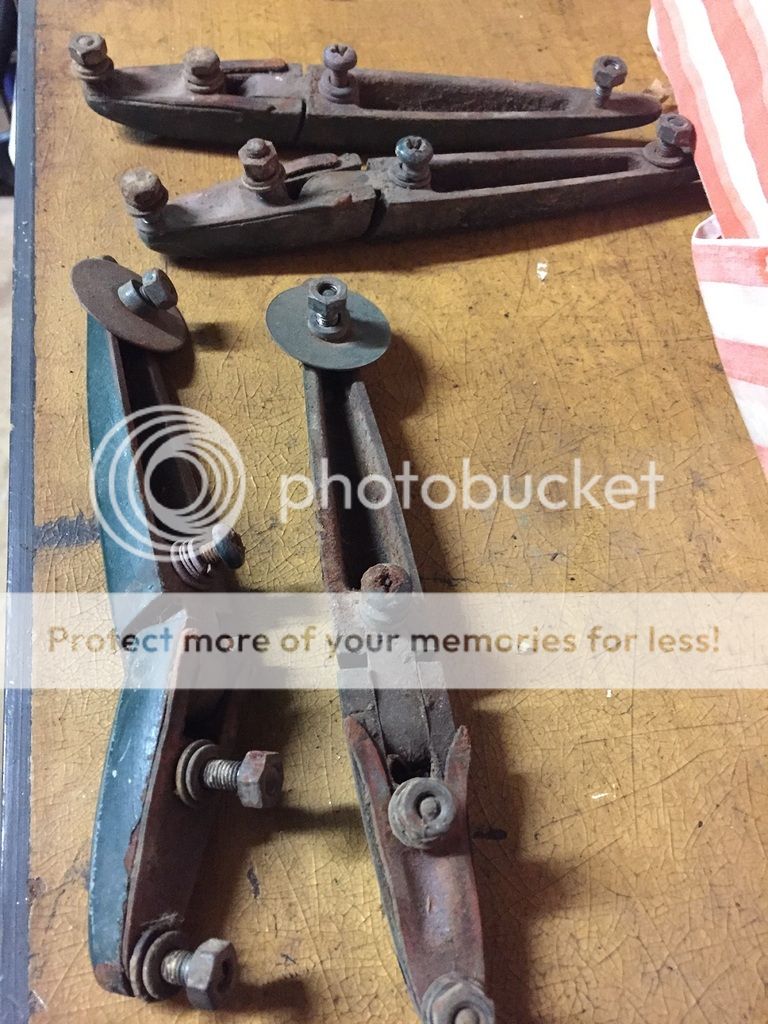

It's a flat thin washer, about the thickness of the body metal, and about 40mm diameter from memory. I assume its purpose is to gently spread the load in that area of the door skin by flexing to a certain degree. A thick washer might leave an impression through the door skin when under load and hence be visible from outside.

I'll see if I can get more details in the next day or so as I'm about to dismantle my doors.

_________________
ex-NSW Police 1970 MK II Cooper S
VMCI #43
Top
 Profile

DavidE
PostPosted: Tue Jun 27, 2017 3:25 pm
Offline
998cc
998cc

Joined: Mon Jan 12, 2015 10:59 pm
Posts: 985
Location: Holt ACT
winabbey wrote:
womble99 wrote:
So for someone starting with bare hinges the studs are 3 different sizes? Also does anyone have dimensions on MYH103 washer that Doug mentioned?

It's a flat thin washer, about the thickness of the body metal, and about 40mm diameter from memory. I assume its purpose is to gently spread the load in that area of the door skin by flexing to a certain degree. A thick washer might leave an impression through the door skin when under load and hence be visible from outside.

I'll see if I can get more details in the next day or so as I'm about to dismantle my doors.


Known in another industry segment as penny washers.
Top
 Profile

womble99
PostPosted: Tue Jun 27, 2017 4:28 pm
Offline
998cc
998cc
User avatar

Joined: Tue Aug 21, 2012 6:59 pm
Posts: 1125
Location: Barossa Valley, SA
DavidE wrote:
winabbey wrote:
womble99 wrote:
So for someone starting with bare hinges the studs are 3 different sizes? Also does anyone have dimensions on MYH103 washer that Doug mentioned?

It's a flat thin washer, about the thickness of the body metal, and about 40mm diameter from memory. I assume its purpose is to gently spread the load in that area of the door skin by flexing to a certain degree. A thick washer might leave an impression through the door skin when under load and hence be visible from outside.

I'll see if I can get more details in the next day or so as I'm about to dismantle my doors.


Known in another industry segment as penny washers.


Where on earth do you get penny washers these days?
Top
 Profile

minimans
PostPosted: Tue Jun 27, 2017 4:30 pm
Offline
848cc
848cc

Joined: Tue Jan 24, 2017 7:10 am
Posts: 126
Ask for fender washers?
Top
 Profile

timmy201
PostPosted: Tue Jun 27, 2017 4:50 pm
Offline
1275cc
1275cc
User avatar

Joined: Sun Apr 29, 2012 1:19 pm
Posts: 4506
Location: Wollongong, NSW
AKA mudguard washers in Aus
https://www.bunnings.com.au/zenith-1-4- ... k_p2420297

Or try the local fastener shop!

_________________
Top
 Profile

DavidE
PostPosted: Tue Jun 27, 2017 4:54 pm
Offline
998cc
998cc

Joined: Mon Jan 12, 2015 10:59 pm
Posts: 985
Location: Holt ACT
timmy201 wrote:
AKA mudguard washers in Aus
https://www.bunnings.com.au/zenith-1-4- ... k_p2420297

Or try the local fastener shop!


ROTFL!!
Imperial sizing! Eh? Just like metric star pickets? Gawd. I guess attributes are attributes.
Top
 Profile

ausdino
PostPosted: Tue Jun 27, 2017 10:37 pm
Offline
848cc
848cc
User avatar

Joined: Tue Sep 27, 2016 12:43 pm
Posts: 377
Location: Brisbane north

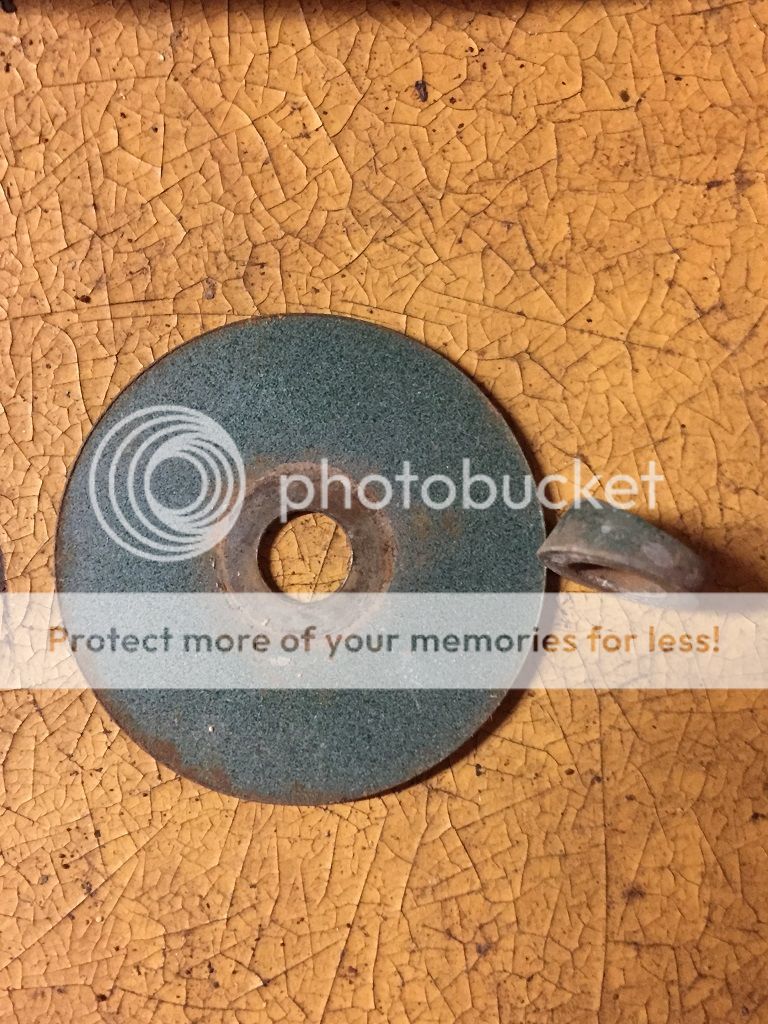

Something like these... 38mm diameter, 7mm hole



_________________
1970 Mk2 Cooper S under restoration
Top
 Profile
