Different Types of Carbs

Moderators: winabbey, simon k, poeee, Mick

Page 1 of 4

[ 52 posts ]

Go to page 1, 2, 3, 4 Next

Print view

Previous topic | Next topic

Author

Message

ryan

Post subject: Different Types of Carbs

Posted: Tue May 19, 2009 5:39 pm

1275cc

Joined: Wed Jan 05, 2005 4:50 pm
Posts: 2690
Location: Wollongong

This may seem like a bit of a newbie question for someone who has been hanging around minis for a while, but can someone tell me if this is right?

Inch and a quarter = HS2
Inch and a half = HS4
Inch and three quarters = HS6

Any other types of carbs?

Also it would be really good if we could do a thread with pics of each different type of carb and notes on how to identify them (if there isn't one already). For example pics showing the different holes for mounting on each size.

Ryan

_________________
Ryan Filippi
Minis In The Gong
[email protected]
www.minisinthegong.com.au

Top

micowen

Post subject:

Posted: Tue May 19, 2009 5:43 pm

1098cc

Joined: Mon Mar 30, 2009 5:38 pm
Posts: 1650
Location: macquarie fields NSW

Good idea on the thread, only wish I could help. Sort of new to all this!

_________________
Chuck Norris is the only person alive who can kick you in the back of the face!!
mooo, I'm a pig!

Top

drmini in aust

Post subject:

Posted: Tue May 19, 2009 5:50 pm

religious status

Joined: Fri Mar 19, 2004 6:19 pm
Posts: 39757
Location: near Baulkham Hills, NSW

SUs...
1-1/4" = HS2
1-1/2" = HS4
1-1/2" - HIF38
1-3/4" = HS6
1-3/4" = HIF44
1-7/8" = HS7
2" = HS8

Others- Sidedraft (common sizes- there are others)
Weber 40DCOE, Dellorto 40DHLA = 40mm twin choke
Weber 42DCOE = 42mm twin choke
Weber 45DCOE, Dellorto 45DHLA = 45mm twin choke
Weber 48DCOE, Dellorto 48DHLA = 48mm twin choke

Downdraft
Nikki, 2 barrel progressive
Weber 28/36 DCD etc, 2 barrel progressive
Weber 48IDA twin choke

_________________
DrMini- 1970 wasaMatic 1360, Mk1S crank, 86.6HP (ATW) =~125 @ crank, 45 Dellorto (38 chokes), RE282 sprint cam, 1.5 rockers, 11.0:1 C/R. :mrgreen:

Last edited by drmini in aust on Tue May 19, 2009 7:40 pm, edited 2 times in total.

Top

ryan

Post subject:

Posted: Tue May 19, 2009 7:35 pm

1275cc

Joined: Wed Jan 05, 2005 4:50 pm
Posts: 2690
Location: Wollongong

thanks doc,

Now, can we get some pics of each of these carbs so that people can identify them.

I want to make this into a 'how to' as it often comes up.

_________________
Ryan Filippi
Minis In The Gong
[email protected]
www.minisinthegong.com.au

Top

gafmo

Post subject:

Posted: Tue May 19, 2009 7:42 pm

the King of Bling

Joined: Thu Jun 03, 2004 11:11 pm
Posts: 19858
Location: Baulkham Hills

Twin HS2

HS4

HS6

HIF38

HIF44

_________________
Stop Licking the Dog...I Don't Care Who Started It

Last edited by gafmo on Tue May 19, 2009 7:50 pm, edited 1 time in total.

Top

drmini in aust

Post subject:

Posted: Tue May 19, 2009 7:46 pm

religious status

Joined: Fri Mar 19, 2004 6:19 pm
Posts: 39757
Location: near Baulkham Hills, NSW

Dellorto 45DHLA

_________________
DrMini- 1970 wasaMatic 1360, Mk1S crank, 86.6HP (ATW) =~125 @ crank, 45 Dellorto (38 chokes), RE282 sprint cam, 1.5 rockers, 11.0:1 C/R. :mrgreen:

Top

ryan

Post subject:

Posted: Tue May 19, 2009 8:14 pm

1275cc

Joined: Wed Jan 05, 2005 4:50 pm
Posts: 2690
Location: Wollongong

Thanks Gaf and Kev,

Gaf, if I make this into a nice neat new post, will you make it into a how to?

_________________
Ryan Filippi
Minis In The Gong
[email protected]
www.minisinthegong.com.au

Top

gafmo

Post subject:

Posted: Tue May 19, 2009 8:17 pm

the King of Bling

Joined: Thu Jun 03, 2004 11:11 pm
Posts: 19858
Location: Baulkham Hills

I was orginaly going to do a How to on Carbs, but havent gotten around to it..So no troubles at all..Poee actualy does it :wink:

_________________
Stop Licking the Dog...I Don't Care Who Started It

Top

Austin850

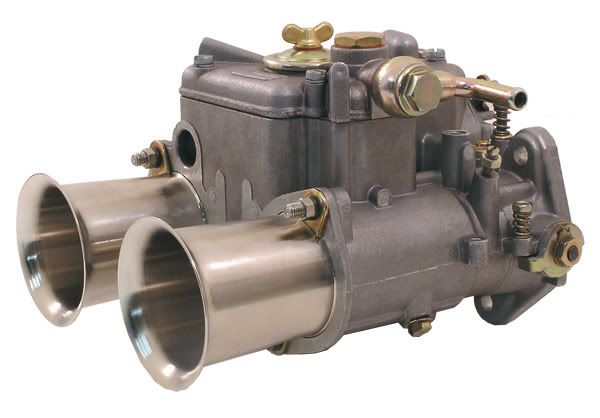

Post subject: ..and the 45mm DCOE Weber

Posted: Tue May 19, 2009 8:21 pm

998cc

Joined: Thu Jun 14, 2007 10:08 pm
Posts: 542
Location: Belconnen, Canberra

Top

Morris 1100

Post subject:

Posted: Tue May 19, 2009 8:30 pm

Causing or creating vexation

Joined: Wed Jul 21, 2004 10:32 pm
Posts: 19124

Top

rampage101

Post subject:

Posted: Tue May 19, 2009 8:31 pm

998cc

Joined: Wed Mar 17, 2004 8:52 am
Posts: 734
Location: NSW Australia

Honestly Gafmo, surely you could have found something a little shinier :lol:

Top

justfanginaround

Post subject:

Posted: Tue May 19, 2009 8:33 pm

998cc

Joined: Tue Sep 19, 2006 1:20 pm
Posts: 883
Location: Airport West

m1100 what are they off ?

_________________
120bhp with 450kg just fun waiting to happen

We were prob. drunk when we set it up last and thought this will be a good idea

Top

gafmo

Post subject:

Posted: Tue May 19, 2009 8:34 pm

the King of Bling

Joined: Thu Jun 03, 2004 11:11 pm
Posts: 19858
Location: Baulkham Hills

I also the same above for a HIF44 but I cant find it at the moment but have found original and put it back up tomorrow

Additionals not common seen in Australia

carburatore dellorto fzd 32.26 nuovo per fiat 500 3

Thier is also Fish...http://www.ausmini.com/forums/viewtopic ... ight=reece

_________________
Stop Licking the Dog...I Don't Care Who Started It

Last edited by gafmo on Tue May 19, 2009 9:25 pm, edited 4 times in total.

Top

Morris 1100

Post subject:

Posted: Tue May 19, 2009 8:35 pm

Causing or creating vexation

Joined: Wed Jul 21, 2004 10:32 pm
Posts: 19124

justfanginaround wrote:

m1100 what are they off ?

A 1958 Coventry Climax FPF motor. :wink:

(Cooper/Lotus Formula 1)

Top

Austin850

Post subject: Re: ..and the 45mm DCOE Weber

Posted: Tue May 19, 2009 8:45 pm

998cc

Joined: Thu Jun 14, 2007 10:08 pm
Posts: 542
Location: Belconnen, Canberra

The previous image I posted was stolen from the net.

This one is mine:

Top
