 Post subject: Twini Clutch Problem
PostPosted: Sat Mar 23, 2013 11:03 am
Offline
998cc
998cc

Joined: Sun Nov 06, 2005 5:41 pm
Posts: 860
Location: Adelaide
The Twini clutch has been giving me problems for ages – not enough travel for a smooth disengagement.

The clutch uses standard Mini hydraulic components and pedal box. All hydraulic components and mechanical wear points are new including the arm, plunger and all pins.
The only difference being the use of tin cans, not plastic, on the clubman GT pedal box. Not sure if the pedals are the same between the old and new Australian Minis. And for some reason the clutch pedal sits lower than the brake pedal.

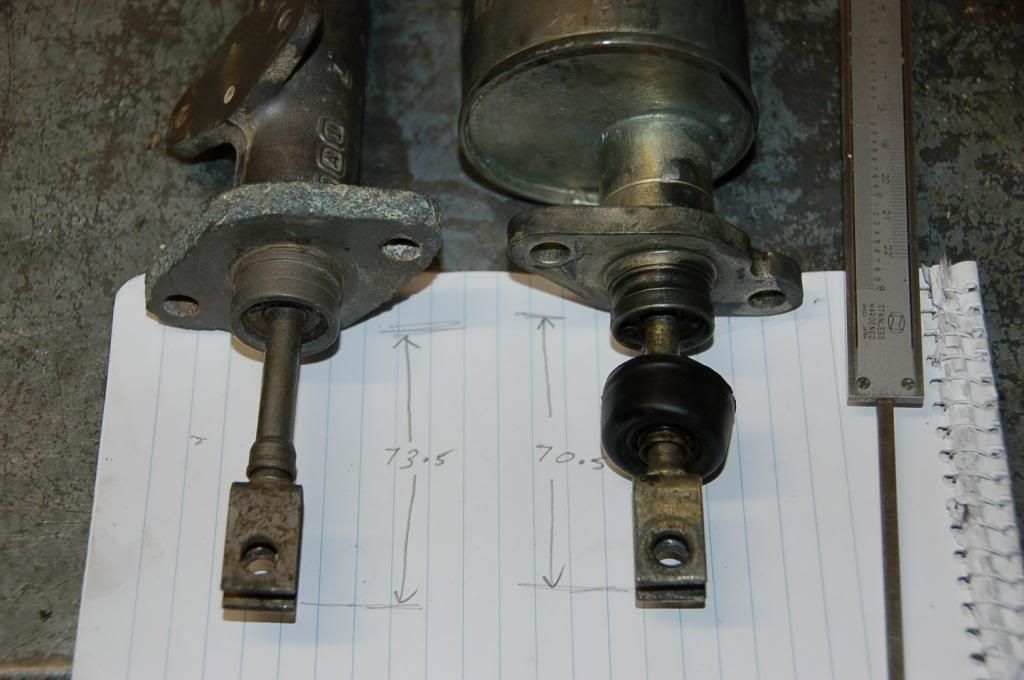

Measured up some old master cylinders and found that the push rod on the tin can is about 3mm longer than the one on the plastic style cylinder.

This will result in 3mm more travel in the clutch master cylinder, which equates to about 0.4mm travel at the clutch thrust bearing. Referring to the following link you only need about 0.82mm travel to release the clutch.

http://www.minimania.com/classic-mini-c ... cfm?id=153



So I will extend the push rods by 3 mm, and give it a go. Need to get the rear engine back in first.


Top
 Profile

 Post subject:
PostPosted: Sat Mar 23, 2013 11:16 am
Offline
SooperDooperMiniCooper ExpertEngineering
User avatar

Joined: Fri Apr 29, 2005 9:46 am
Posts: 18887
Location: Under the bonnet son!
I don't believe the piston rod length is the issue. Both pistons are pushed up the same distance by the pedal. One may start lower than the other, but it will still go up the same distance in stroke.

If both pistons are the same bore, then both cylinders will displace the same amount of fluid. All a longer push rod "might" do is take up any slack which can be cured by replacing the worn pushrod or clevis pin, or soft/broken pedal spring.

If it is simply two standard mini systems working in parallel, then the solution will be with the same answers we use on our own single clutch minis which have problems of disengagement.

ie. throwout adjustment, clevis pin condition, worn clutch arm ball or bearing carrier, bleeding or master cylinder bore diameter. I would not expect it to be any of the obvious of course given the amount of care you have put into the car. Sometimes its easier to set the clutch cylinder up with the larger 0.75" bore instead of 0.70" to push a little extra fluid through.

_________________
SooperDooperMiniCooperExpertEngineering

All garage work involves equal measures of enthusiasm, ingenuity and a fair degree of irresponsibility.


Last edited by Mick on Sat Mar 23, 2013 12:56 pm, edited 1 time in total.

Top
 Profile

 Post subject:
PostPosted: Sat Mar 23, 2013 11:20 am
Offline
1275cc
1275cc
User avatar

Joined: Thu May 24, 2007 7:19 pm
Posts: 5370
Location: Yandina,Sunshine Coast,QLD
Try to make up some threaded pushrods so adjusting them is eaiser in the future.

_________________
Respect mine and I'll respect yours.


Top
 Profile

 Post subject:
PostPosted: Sat Mar 23, 2013 12:51 pm
Offline
998cc
998cc

Joined: Sun Nov 06, 2005 5:41 pm
Posts: 860
Location: Adelaide
Thanks for the comments so far.

I believe it is the piston rod retaining ring that stops the pedal coming up further from the floor. The ring hits the circlip inside the cylinder when you take your foot off, which stops the pedal coming up further.

Thus, the longer rod in the tin can will allow the pedal to come up a little further when you take your foot off. The 3mm longer rod will bring the pedal up about 12mm when you look at the ratio. Thus, with the pedal up higher to start with, the stroke is longer as you push it down and hit the floor.

I am also checking the diaphragms are flat, but I can’t see how that can affect the amount of disengagement – just makes the pedal heavier, or lets the clutch slip if it’s not correct.

Both cylinders are ¾ inch, which makes it a bit heavy with two orange springs.
I like the idea of the adjustable rods, but not sure I will go that far.


Top
 Profile

 Post subject:
PostPosted: Sat Mar 23, 2013 6:55 pm
Offline
1098cc
1098cc
User avatar

Joined: Sun Feb 20, 2005 8:11 pm
Posts: 1347
Location: Wellington,
3mm will make a big difference in disengaging the clutch

what you need to remember 50 odd years on the clutch is probably sitting further down on the crank.

Replaced every thing clutch related in my car and still had problems with the clutch welded in 3mm in the clutch as you are planning rod and the clutch has worked good ever since

you are on the right track


Top
 Profile

 Post subject:
PostPosted: Sat Mar 23, 2013 7:06 pm
Offline
SooperDooperMiniCooper ExpertEngineering
User avatar

Joined: Fri Apr 29, 2005 9:46 am
Posts: 18887
Location: Under the bonnet son!
IndigoBlueCooperS wrote:
Thanks for the comments so far.

I believe it is the piston rod retaining ring that stops the pedal coming up further from the floor. The ring hits the circlip inside the cylinder when you take your foot off, which stops the pedal coming up further.



Ah yep, now I understand.

_________________
SooperDooperMiniCooperExpertEngineering

All garage work involves equal measures of enthusiasm, ingenuity and a fair degree of irresponsibility.


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 7:03 am
Offline
1098cc
1098cc

Joined: Sat Jul 23, 2011 8:17 am
Posts: 1964
Location: san remo nsw
I was reading about your twini project, very interesting. I may be overseeing something and be wrong but why do you need two master cylinders? Why not just one to work 2 slaves? You don't have 4 m/c's to work brakes.


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:05 am
Offline
SooperDooperMiniCooper ExpertEngineering
User avatar

Joined: Fri Apr 29, 2005 9:46 am
Posts: 18887
Location: Under the bonnet son!
Brakes are about pressure. They don't need to move the pistons very far at all before they take up thereafter needing simply foot pressure to do their job. Clutches are more about volume. A clutch uses a lot of fluid to move a piston through a longer distance.
It barely manages this one slave cylinder as it is, let alone two pistons.

_________________
SooperDooperMiniCooperExpertEngineering

All garage work involves equal measures of enthusiasm, ingenuity and a fair degree of irresponsibility.


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:27 am
Offline
998cc
998cc

Joined: Sun Nov 06, 2005 5:41 pm
Posts: 860
Location: Adelaide
Two separate circuits were necessary to have both clutch’s disengaging simultaneously at the same rate. If you have one master cylinder feeding two slaves, the one with the least resistance operates first, then the other. I also considered using a cylinder from a duel brake system, but the one I checked had different sized bores for the front and rear.
I think it is like Mick's comment - volume compared to pressure.


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 6:39 pm
Offline
1098cc
1098cc
User avatar

Joined: Sun Feb 20, 2005 8:11 pm
Posts: 1347
Location: Wellington,
I just read thru my notes I increased my clutch rod by 6mm


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 7:28 pm
Offline
998cc
998cc

Joined: Sun Nov 06, 2005 5:41 pm
Posts: 860
Location: Adelaide
I was looking at extending the rods by 5mm. If it is too long (rod hits the cross member on the inside) I will put a shim under the cylinder to lift it.


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:29 pm
Offline
848cc
848cc
User avatar

Joined: Fri Jul 01, 2011 3:20 pm
Posts: 460
Location: Goulburn NSW
I believe you are on the right track. I recently spoke to a owner of a clubman LS and he was complaining of the position of the clutch pedal in relation to the brake. You guessed it, someone had fitted a tin clutch master.

_________________
Dalmeny


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:36 pm
Offline
998cc
998cc

Joined: Sun Nov 06, 2005 5:41 pm
Posts: 860
Location: Adelaide
The tin cans work on the "BMC" minis, why do some of us have difficulties fitting them to the late ones?


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:41 pm
Offline
1360cc
1360cc
User avatar

Joined: Mon Aug 23, 2004 10:07 pm
Posts: 10653
Location: SE Melbourne
Are the holes or pins worn at all where the pushrods connect?


Top
 Profile

 Post subject:
PostPosted: Sun Mar 24, 2013 8:42 pm
Offline
848cc
848cc
User avatar

Joined: Fri Jul 01, 2011 3:20 pm
Posts: 460
Location: Goulburn NSW
I would have thought that with the shaft shorter you would have to push the pedal down to get the clevis hole to lie up with the M/C rod hole :?

_________________
Dalmeny


Top
 Profile
