Hi guys

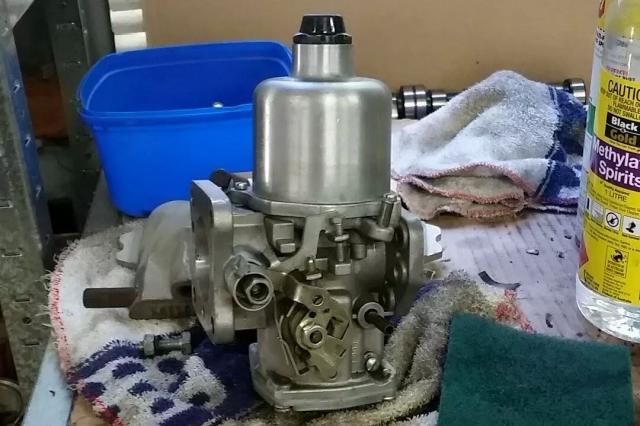

Just wondering if you could shed some light as to what is up with this HIF44 I bought recently from 8450jon on ebay?
It was listed to suit Mini - but doesn't look like the linkages are right.

The choke and throttle linkages just don't seem right at all.
The casting looks wrong on the side too. Screw adjustments and take-offs like no other Mini HIF44 I have seen.
Any help appreciated.


Cheers
Will


Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Mon Feb 23, 2015 9:41 pm
Offline
1275cc
1275cc
User avatar

Joined: Sat Nov 19, 2005 1:37 pm
Posts: 2495
Location: Vegus, Brisvegus
They come in a variety of set ups. I have a correct one from an MG Metro engine in the Moke and another in a box. The spare has the butterfly turning in the opposite direction but both linkages on the same side as your photo. I had to make up a cable bracket to suit. The abutment plates available just didn't work. Looks like yours is different again and you will need to do some fabrication.

M


Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Tue Feb 24, 2015 6:58 am
Offline
848cc
848cc

Joined: Sun Oct 06, 2013 10:30 pm
Posts: 103
Attachment:
Copy of DSC05871.JPG
This is what my HIF44 looks like on my 970 S engine


You do not have the required permissions to view the files attached to this post.


Last edited by leonrjohnson on Tue Feb 24, 2015 10:35 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Tue Feb 24, 2015 8:56 am
Offline
848cc
848cc

Joined: Tue Apr 20, 2004 3:33 pm
Posts: 434
Location: Bentleigh
Hiya,
the one I had on my clubby was very similar, I'll try and upload a photo from my phone.
I have other hifs that are different again.
As mokesta said, it is a case of bracketry.

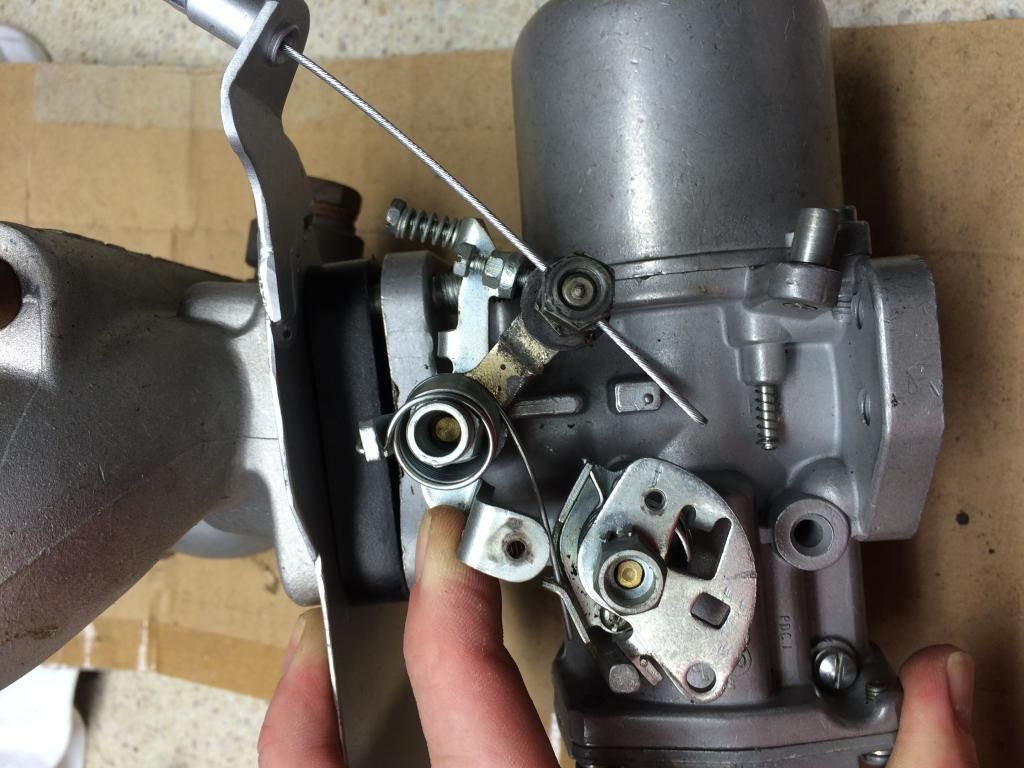

pic

_________________
MX5 NA Clubman (1993)
MX5 NB SE Turbo (2004)
MX5 NB8B (2001)
RS Focus (2016)


Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Tue Feb 24, 2015 10:49 am
Offline
1360cc
1360cc

Joined: Mon May 03, 2004 6:46 pm
Posts: 13688
Location: ADL
Yuck. Might get on the hunt for something that will be far more of a 'bolt on' solution.

Cheers for the input fellas :)


Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Wed Feb 25, 2015 9:14 pm
Offline
1275cc
1275cc
User avatar

Joined: Sat Nov 19, 2005 1:37 pm
Posts: 2495
Location: Vegus, Brisvegus
willy,

I just went to the shed to double check. Turns out my spare HIF44 is similar to yours. Mine came with a weird throttle linkage that looked like it suited a twin set-up. To replace it I had to rob one from a HS4 carby I had. I don't think I filed out the shaft hole to position it. I just put up with it being at slightly the wrong angle.

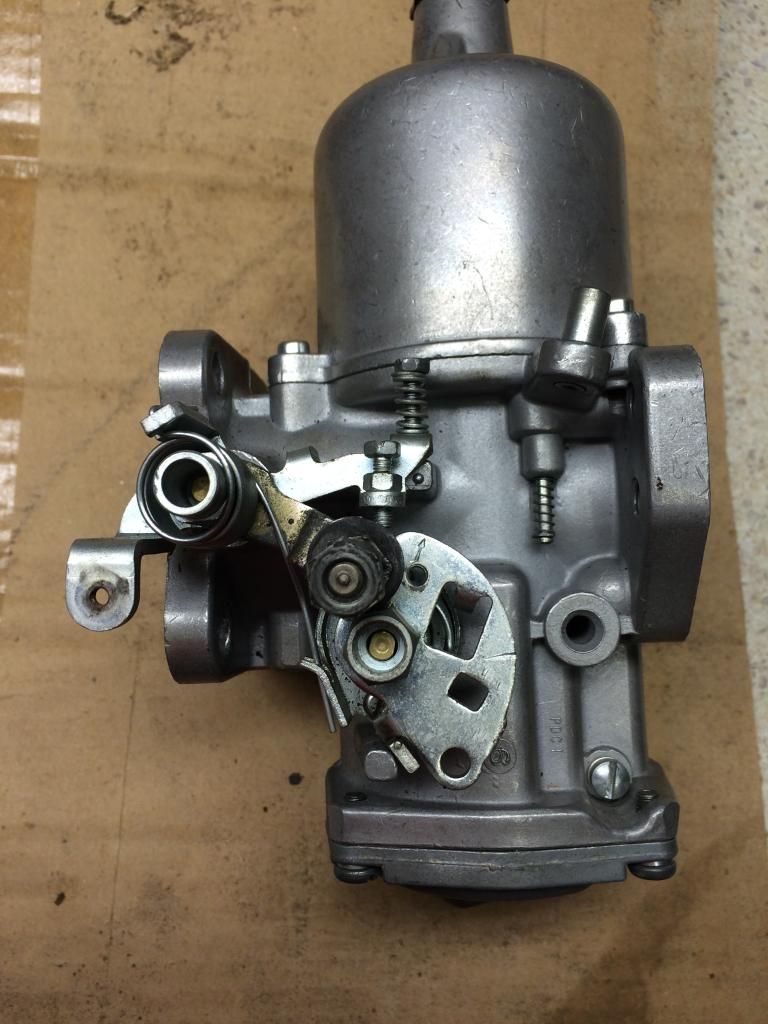

Here it is with the extra linkage (dirty one)

Closer look.

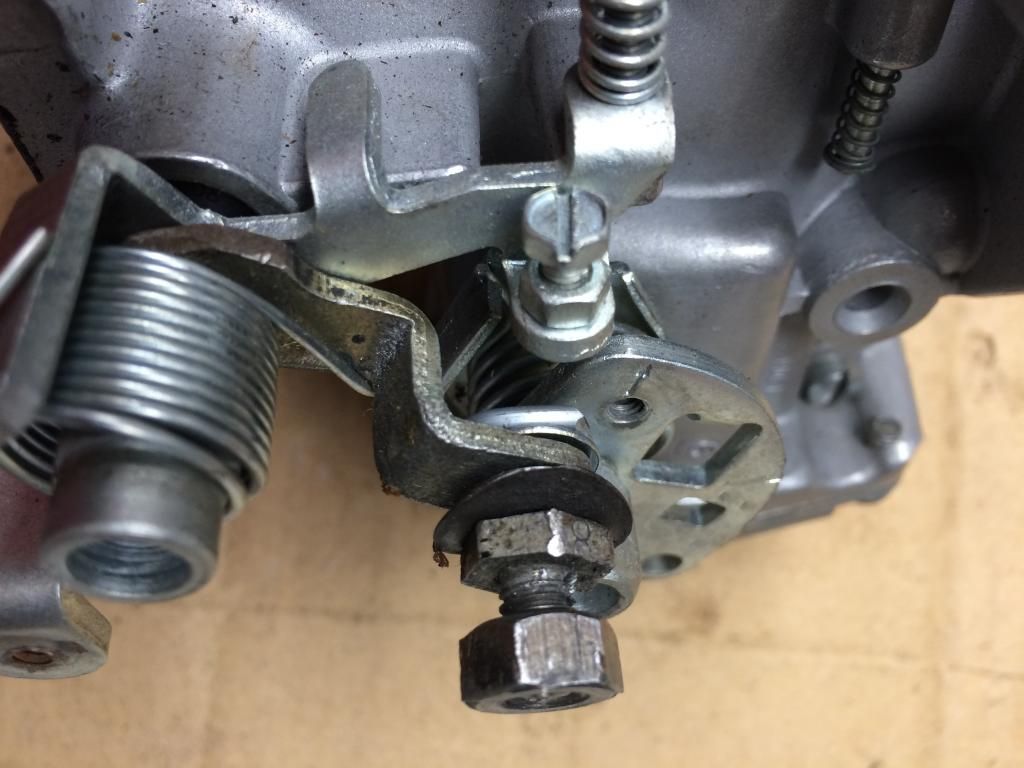

I think I can see that yours already has a link like this so you just needs the cable holder.

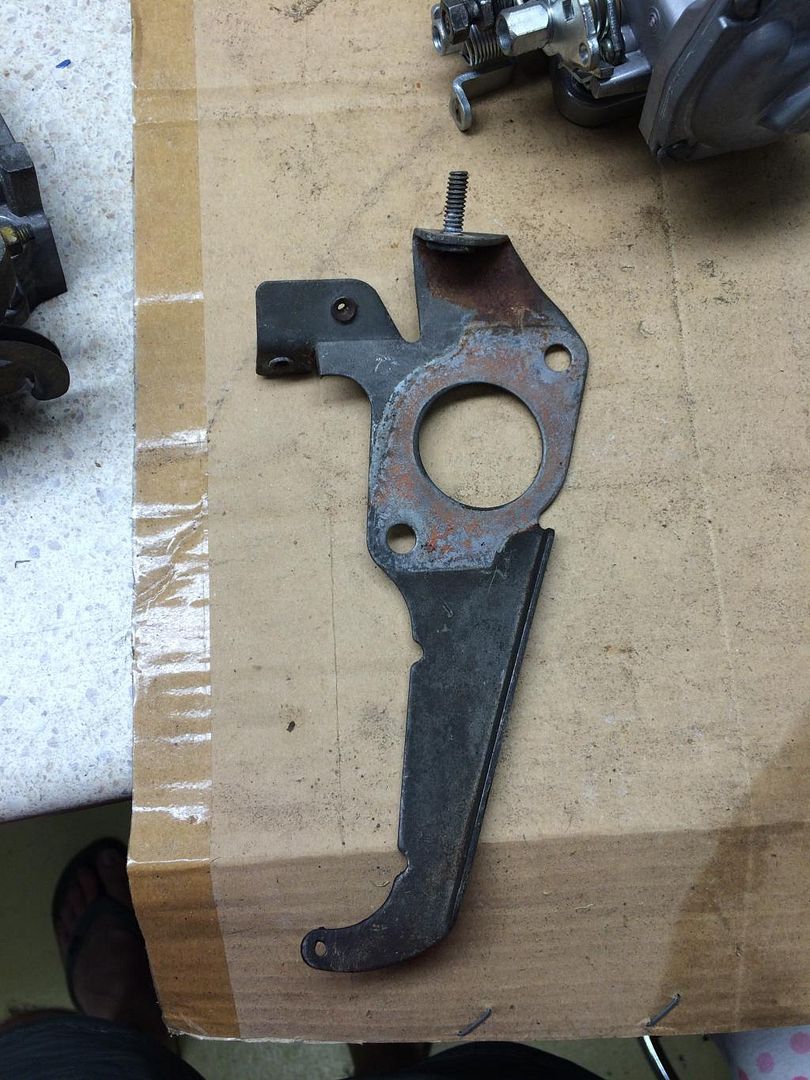

Then I got one of these from an HS4

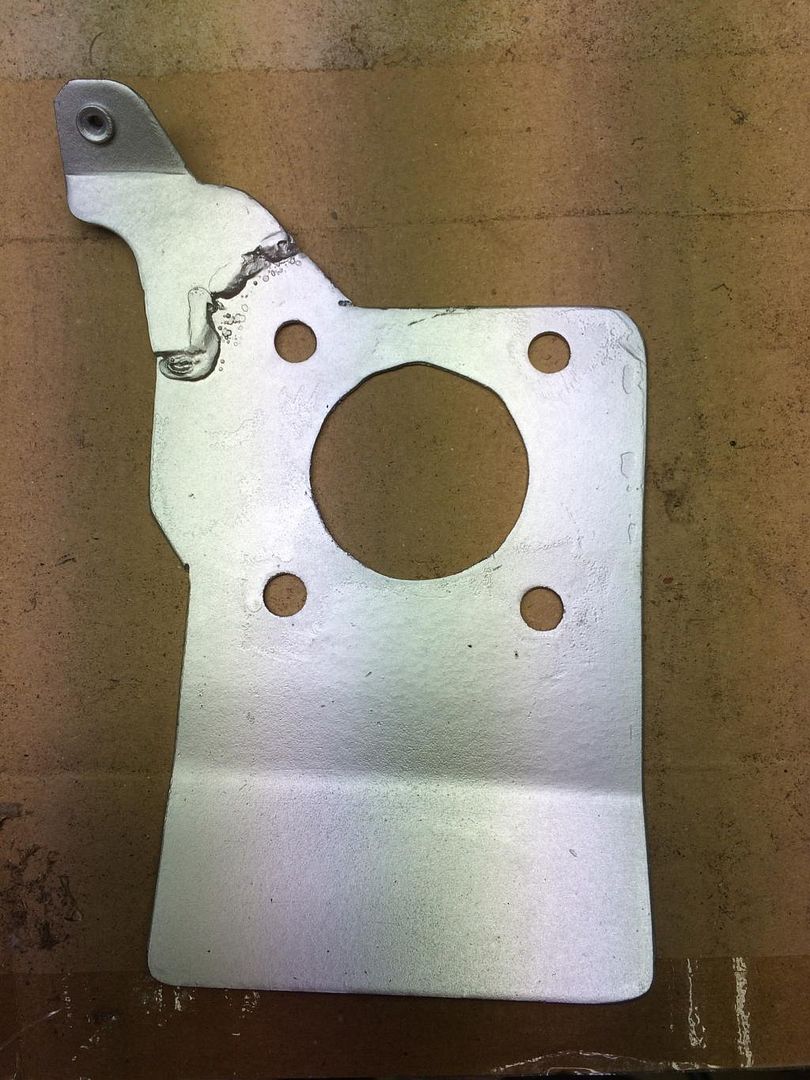

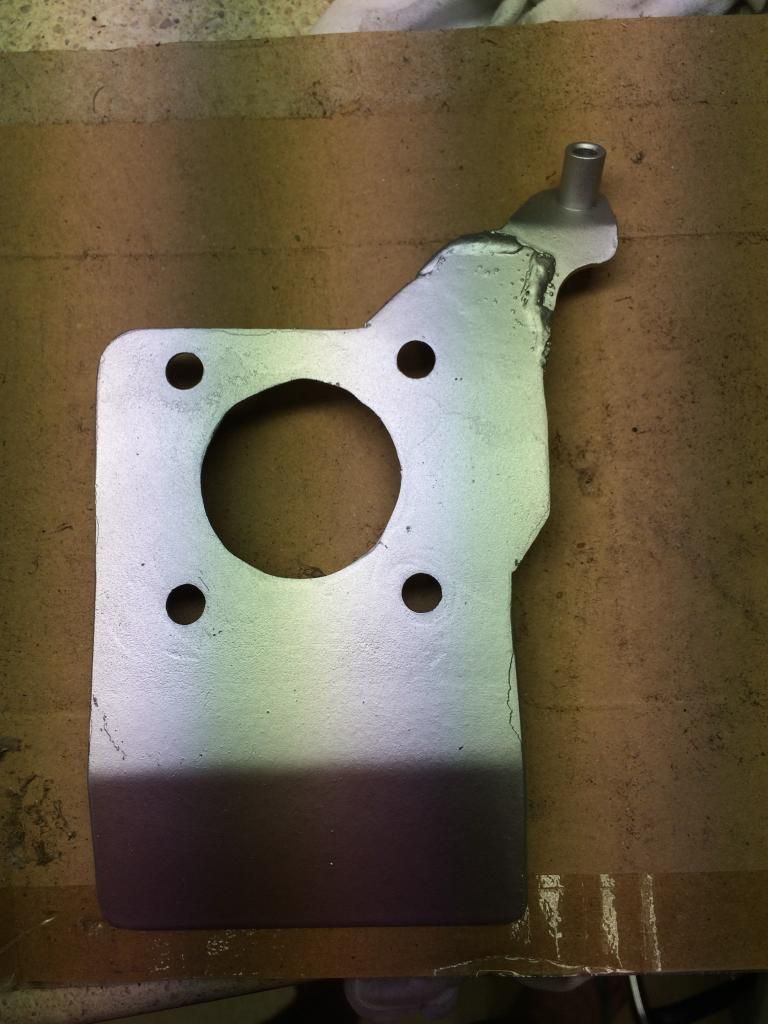

Cut bits off it and welded it to a bit of steel from an old shelf

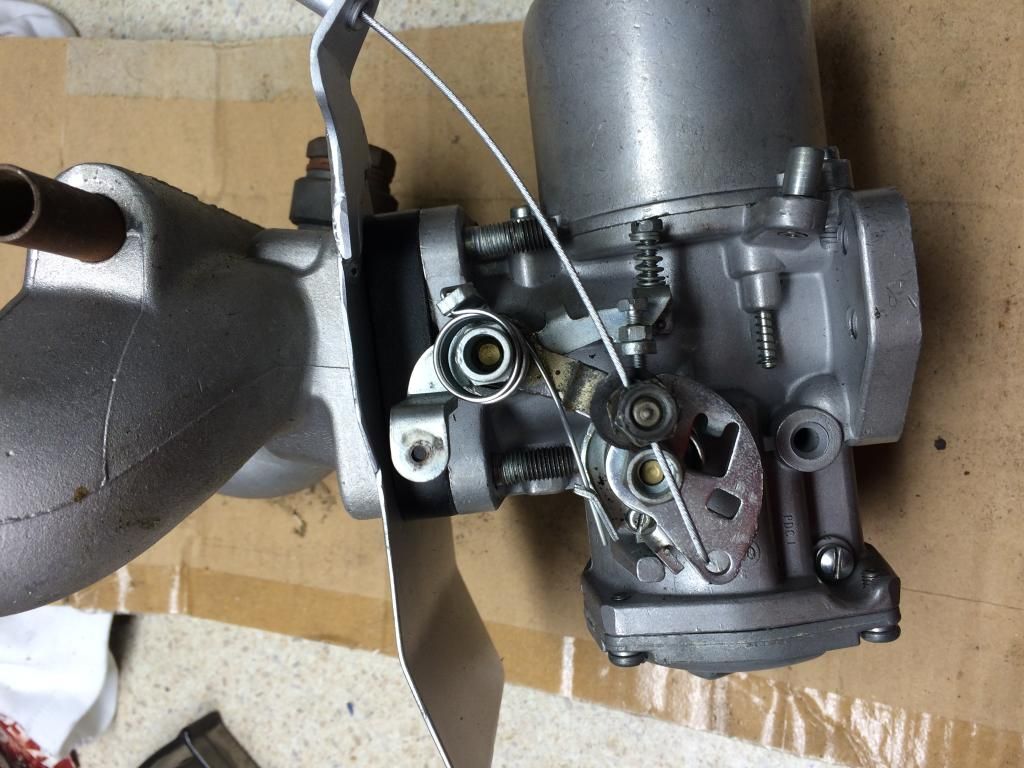

So it looks like this assembled

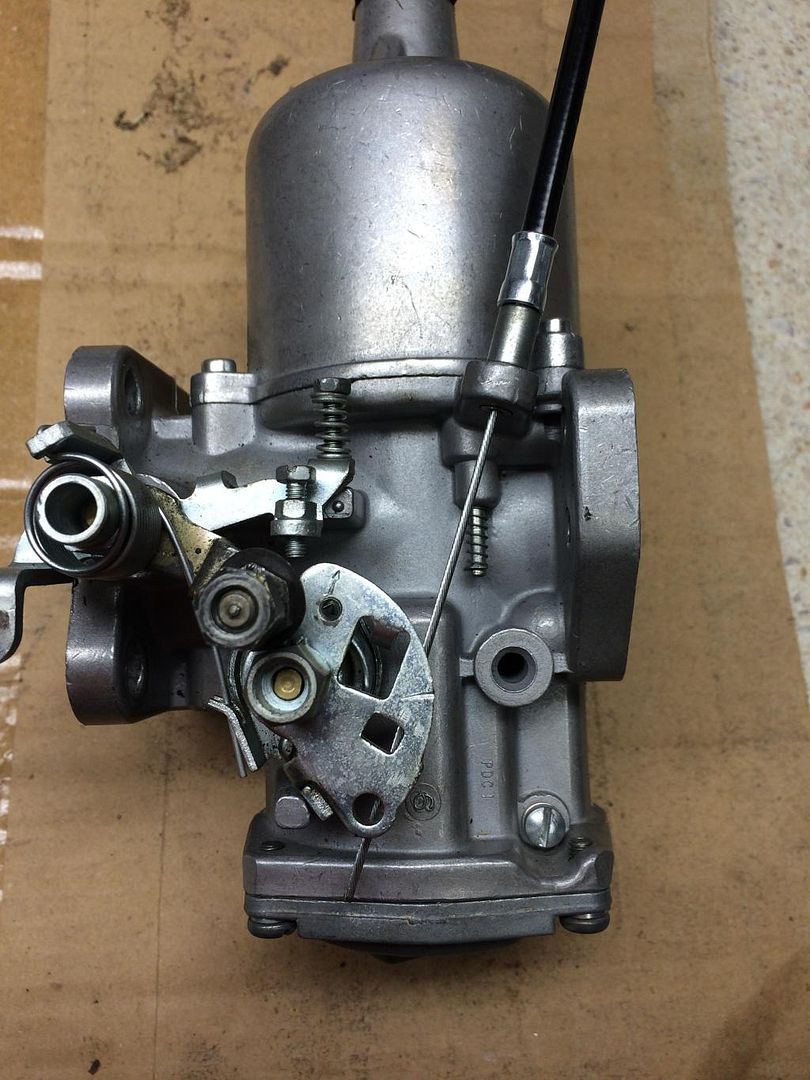

Choke cable goes in like this (but mine doesn't have the clamp yet)

You can see that my accelerator link sits a bit low so it doesn't have the best geometry compared to the cable holder. Yours is turned a bit more upward so should have a better action.

I hope this helps.

M


Top
 Profile

 Post subject: Re: HIF44 - wrong?
PostPosted: Thu Feb 26, 2015 1:37 pm
Offline
1360cc
1360cc

Joined: Mon May 03, 2004 6:46 pm
Posts: 13688
Location: ADL
Mokesta - your images are absolutely sensational and give me a much better understanding of how I could make this work... and I think I might just do that!

Interesting to see the choke cable position. Not fantastic for a Mini, but again I think I could make it work.

Thanks a million for the images.
