Greg,,, the Twinky kits have sold out,,,, both batches

& if you were here to day, you`d have gone for a fang in one of the Turbo Injected Twinkys ,,,,,, funny enough there`e WAY more coming from them than i ever expected,,, we`ve recently found even more grunt (with a little fiddle here & there) but i`m pretty certain that a new gearbox will need to be produced to be able to cope with these things,,, so we are keeping the boost down to a reasonable 24lbs for race engines & a mild 15lbs for road engines now

24lbs boost,,, with 24deg ign,,, @ 8000rpms is pretty damn serious power i can tell you

if that`s not """finished,,, fine tuned,,,, & developed""" then i don`t know what is

But we have WAY more up our sleeves yet

Shhhh,,, don`t tell anyone tho,,,, if you did,,, then everyone would know what i`ve been up to

_________________
No offence intended here but--> anyone writing a book about minis 30 years ago may not have experienced such worn or stuffed-with components as we are finding these days.

You should put your heart & soul into everything you do.

Turbos are great to produce big horse power but usually at a cost. You will get big HP on just a five porter with big psi, BUT hey that is not what my thread is about.
This thread is about an inexpensive 7 port job with weber carbs for under $2500AUS delivered or without carbs for under $1500AUS delivered.
You want to turbo a muliti port head? Buy the head only and do the turbo thing, cheap cheap.

sorry Ty,,, i didn`t mean for the subject to change,,, i`m all for what you`re doing, Dave Perko knows i mean that, (& i think you do to),,, bargain head & you`d have to be nuts not to buy one

i was being a bit selfish but honestly meaning to add to the title`s theme,,, it would be a good combo you`d have to admit

_________________
No offence intended here but--> anyone writing a book about minis 30 years ago may not have experienced such worn or stuffed-with components as we are finding these days.

You should put your heart & soul into everything you do.

Sorry Matt didnt know it was all finished and done. Perhaps thats the problem. If I didnt know maybe others are in the same boat. As for hijacking the thread, all ok Matt perhaps adding your overhead conversion would appeal to someone. If you want to have a look at one of the heads mine is here.

_________________
1970 Cooper S ex-Bathurst & ATCC
1964 Austin Cooper S ex-Group C race car
1967 Morris Cooper S ex-Group B
1962 Mini Speed sports sedan
1968-71 ex-Peter Manton Shell car

noob question; this will work with the RE13 cam i already have fitted to my 1275?
very tempted by one of these as manifold/carb is what's currently holding up my build

If you are talking about the crossflow then yes, will work with your re13.

_________________
1970 Cooper S ex-Bathurst & ATCC
1964 Austin Cooper S ex-Group C race car
1967 Morris Cooper S ex-Group B
1962 Mini Speed sports sedan
1968-71 ex-Peter Manton Shell car

Do they do a cross flow for B series? Also what are the contact details?

Thanks

_________________
1963 997 Morris Cooper
1964 Sunbeam Tiger
1969 Austin 1800
1969 Lancia Fulvia Rallye 1,3S

Somebody does

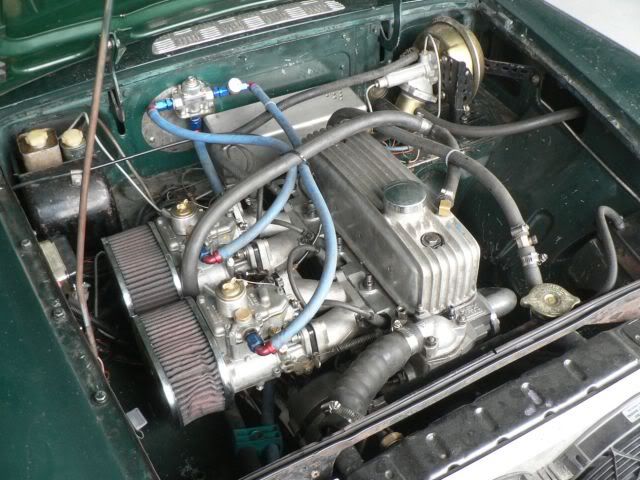

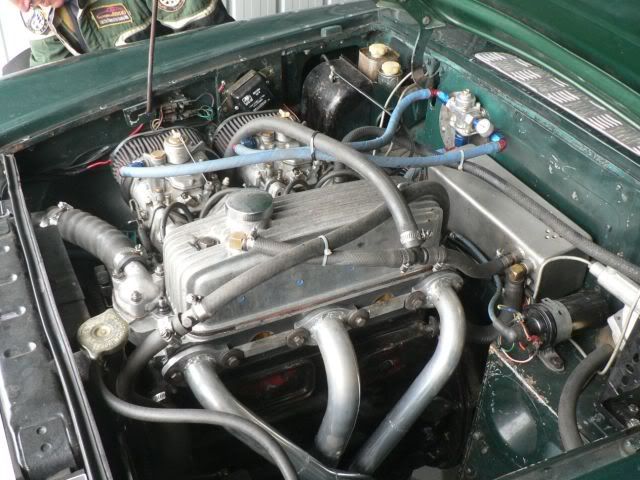

This is a mate's MGB with an alloy crossflow head and twin Webers.



(Sorry about the pic, but it's the only one I have that shows the engine bay - you can just make out the top of a Weber on the driver's side of the engine)

I 'll try and get some better shots and some information about the head tomorrow - I think he's running the MGB at Bryant Park in the final round of the Vic Hillclimb Championship.

_________________
Curly
'64 Cooper 'S' (Group Nb spec)
'67 Mini Marcos GT www.mm7056.wordpress.com

I think they do a B one - Google Pierce Castings. I intend fitting an A series one with a RE13 cam too.

The heads are being on US eBay
http://cgi.ebay.com/ebaymotors/Crossflo ... Mini-1275-

"This is an Auction for a Brand-New-In-The-Box BARE A-Series Performance Alloy CROSSFLOW Cylinder head. This head is sold in three ways though our different ebay listings: This listing is for a bare head
1. BARE HEAD AS ABOVE WITH STUDS, NUTS, WASHERS, HEATER VALVE BOLTS, CARB MOUNT GASKETS, spark plugs $999.95 USD
2. Fully ASSEMBLED WITH VALVES, SPRINGS, RETAINERS, SEAT, WASHERS, COMPLETE ASSEMBLY (plus bolts, studs, and mount gaskets) $1149.95 USD
3. Fully assembled with valves and springs and with TWO Jetted Weber DCOE 40mm carbs and Weber linkage kit. $1999.95 USD (everything)

OK, What you see here is a professionally developed Crossflow head for the popular A-series 1275/1300 head. Made in the USA. It is similar to crossflow heads that were available back in the 60's but it is made of lightweight aluminum alloy rather than Cast iron and the design has been much inproved. This head was created using gas-flow porting technology and the results have been spectacular. What is nice about this head is that it allows you to use your existing exhaust system unlike other heads of the past. It is designed for simple installation and will fit in the cramped engine bay of the MINI when fully assembled with webers. The mounting flange accepts to Weber DCOE or equivalent carbs. They bolt right on with the included studs and nuts. As mentioned above, this head comes from us three different ways and the later two are most popular. We do not recommend oversized valves as this head flows air so well, using large valves has proven to be counter-productive on an engine dyno. We guaranty your satisfaction!
These light-weight (15 lbs.) high strength aluminum alloy cylinder heads run cooler, allow higher compression ratios, and have extremely increased flow rate over stock heads. Heads come with silicon-bronze valve guides and hardened valve seats.


Standard size 1275 valves, springs, and retainers are used or recommended. NGK spark plugs are included. Significant cooling is achieve which is through better heat transfer and coolant flow. This is extremely valuable in the cramped engine bay of a mini.

SPECIFIC TECH INFO:
BARE HEAD WEIGHT: 15 LBS
INTAKE VALVES: 1.3 IN *if ordered
EXHAUST VALVES: 1.15 IN * if ordered
COMBUSTION CAMBER: 23cc
11 bolt head with option with simple drill option for 12th bolt for special applications (cooper S)
Required items: Head Gasket Set, standard fuel tubing and clamps
Optional items: Fuel pressure regulator, Air Cleaners, Weber Top-mount Linkage
We have most of the above available in our other listings

Worldwide Shipping and Handling by US Airmail, Always just $109 USD. "

_________________
Slide
1965 Mini Van (1360)
1970 Mk2 Cooper S (1310)
1978 Rover SD1 V8 (4.6)
1996 Land Rover Discovery V8 (4.0)

Alloy 7-port crossflow B-series head is from the USA, probably the same manufacturer and costs a similar amount to the A-series.

_________________
Curly
'64 Cooper 'S' (Group Nb spec)
'67 Mini Marcos GT www.mm7056.wordpress.com

by the looks of it, the same mob are doing a heap of different Austin type engines...

look here - I guess they're just someone else reselling, but they have them for 2 x different Healy motors, A's and B's

http://www.webcon.co.uk/

as far as I know, this is the manufacturer of those heads: http://www.piercemanifolds.com

_________________
No speakers, no bodykits, no six-inch spacers, no spak filler, no bullshit

That's certainly where these "A" series heads are coming from. Mine was sent direct from there to me in Melbourne.

Andrew

Well B series ordered, will need some porting, this should make the old Austin 1800 lift up her skirt!

_________________
1963 997 Morris Cooper
1964 Sunbeam Tiger
1969 Austin 1800
1969 Lancia Fulvia Rallye 1,3S

Yes the 1800 should be a bit more lively. Anyone remember Bill Gates flying Landcrab fitted with an HRG crossflow (7 port?) head and twin webers.

It was painted in the Young Lions BL Australia Works Team distinctive blue and white colours and competed in the then very popular (and televised) Rallycross championships at Calder and Catalina. Against the likes of Brockies XU1, that damn quick Renault Gordini, and lots of Minis including the yellow supercharged Clubman.

The Landcrab (an ex London to Sydney Marathon car fitted with quite a few l/w panels and Minilite wheels) held its own and was incredibly strong. I have a picture of it somewhere, all fours of the ground at Calder in 1970. I had a Mk2 1800 ute at the time and loved seeing the rally cars in action.
